Διαθεσιμο σε 10 Ημέρες

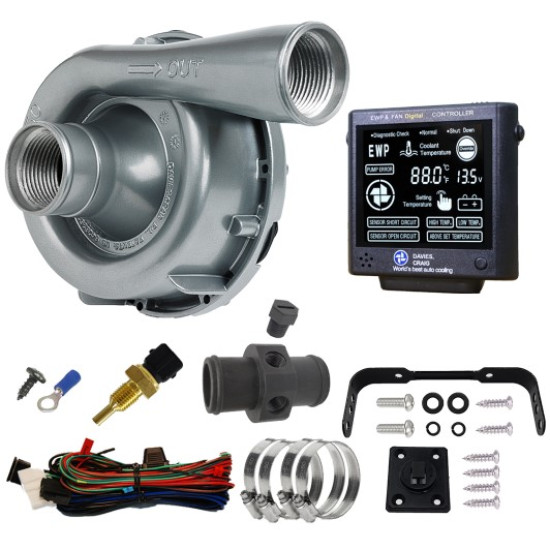

EWP150 Water Pump & Controller Combo
INCLUDES
EWP®150 Alloy-1
EWP®/Fan Digital Controller & Mounting Plate + Bracket-1
Sensor Thermal - coolant temp - ¼" NPT thread-1
Adaptor - Nylon - In Line, 38mm (2 x 1/4" NPT)-1
1/4" NPT Nylon - Bung-1
Wiring Harness-1
Hose Clamps-4
SCREW - SELF TAP 8X3/8 BZ-1
BLUE 6mm Ring Terminal-1
TECHNICAL SPECIFICATIONS
Operating voltage 3V DC to 15V DC
Maximum current 10A @ 13V
Flow rate (max) 162L/min (42.8 US gal/min) @ 13V DC
Operating temp. -40° to 120°C (-40° to 248°F)
Pump design Clockwise centrifugal with volute chamber
Pump weight 1,170 grams (2.6 lb)
Pump material Aluminium (Powder Coated)
Burst pressure 500 kPa (72.5 psi)
Seal Ceramic face seal
Self Priming No, none of our pumps are self-priming
Fits hose size 35mm to 51mm (1.38” to 2”)
Internal Fitting -Inlet & Outlet: -16AN ORB
Push-On fitting Size EWP Inlet & Outlet 38mm
with 3mm Sleeve (#8510) 44mm
with 6mm Sleeve (#8511) 51mm
LCD CONTROLLER
Voltage range 12V DC to 29V DC
Display LCD size 64.6mm (2.54”) x 55.6mm (2.19”)
Maximum current 12Amps
Warning alarm High & low Temp., Above set temp., Sensor short circuit, Pump error, High & low voltage and Sensor open circuit
Targeted (set) temperatures Singular degrees from: 40°C (104°F)to 110°C (230°F)
Memory Set & targeted temperature
Fan cut-in temp. 3°C (5.4°F) above the targeted (set) temperature
Controller type PCB with micro-processor
Sensor type Thermister in housing
Overrun/ shutdown -10°C (14°F) below set/target temperature or 3 minutes
Indicators Temperature, power, EWP, test, fan, high & low temp, voltage, above set temperature (with alarm)
Weight 100 grams (3.5 oz)
Dimensions Length = 98mm (3.8")
Width = 95mm (3.7")
Depth = 25mm (1”)
465.00€
Χωρίς ΦΠΑ: 375.00€
- Διαθεσιμότητα: Διαθεσιμο σε 10 Ημέρες
- Κωδικός: DC8970
- Βάρος: 1.00kg
