Description

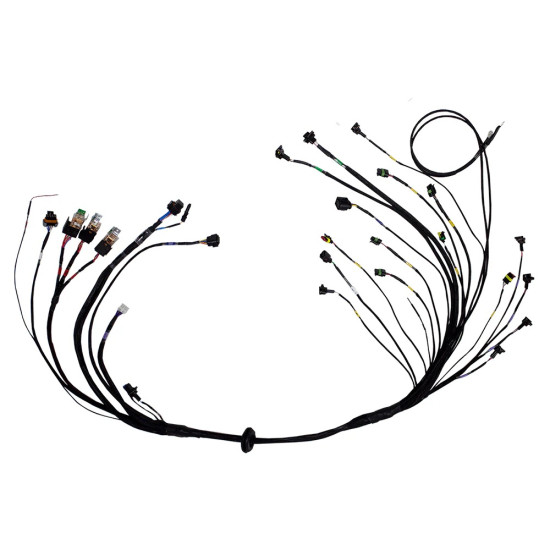

The ready-made harness for FT450  and FT550 6 cylinders provides greater practicality and speed when assembling your car.

Designed to meet all connections of GM Opala 6 cylinder engines , the ready-made harness has several connections so that its installation is quick , simple and with a high quality finish .

It has connections for:

FT450/FT550 (Connector A)

Broadband probe

6 injectors

6 Smart Coil FuelTech coils or  VW Gol G6

Inductive rotation sensor (Fiat)

Phase sensor (VW AP hall distributor)

Peak and Hold (optional use via jumper connector)

TPS (VW AP)

Air and engine temperature sensors (Fiat)

Oil and Fuel Pressure Sensors (PS-10B)

It has an EXTRA connector with 2 inputs and 4 outputs not used by the main harness, ready for you to make the rest of the harness according to your needs for different functions: boost controller, nitro, wheel speeds, electric fan, fuel pump, cold start, 2-step, 3-step, etc.

The FuelTech ready-made harness contains main relay , injector relay and coil relay , all protected by fuse.

To further expand your project, use the expansion harness for the FuelTech FT550 injection module . Together, the two harnesses ( main and expansion ) will serve up to 12 injectors in two banks: 1st sequential bank and 2nd semi-sequential bank . The ignition system can be controlled with up to 6 outputs activated sequentially . In addition, the expansion harness allows the use of 5 more configurable inputs for use of pressure sensors, wastegate and others, in addition to 5 configurable outputs for use of the integrated GearController , CAN B, etc.
