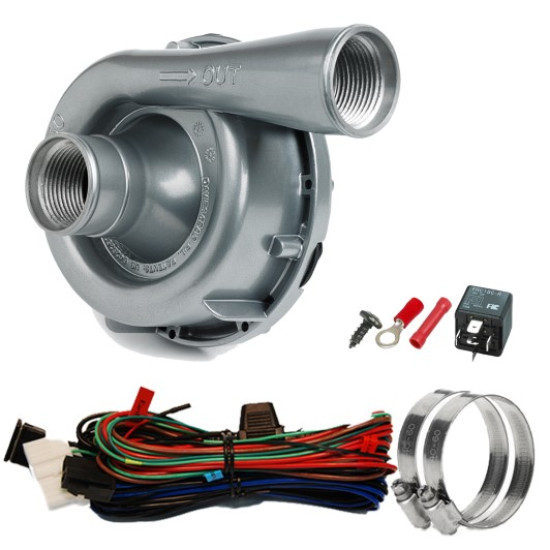

EWP150 Alloy Water Pump
INCLUDES
EWP®150 Alloy-1
EWP® Basic Wiring Harness-1
Hose Clamps-2
RED - Wire Joiner-1
RED - 6mm Ring Termina-1
RELAY - 12V 40 Amp 5 Pin W/- Resistor Protection-1
SCREW - SELF TAP 8X3/8 BZ-1
TECHNICAL SPECIFICATIONS
Operating voltage 3V DC to 15V DC
Maximum current 10A @ 13V
Flow rate (max) 162L/min (42.8 US gal/min) @ 13V DC
Operating temp. -40° to 120°C (-40° to 248°F)
Pump design Clockwise centrifugal with volute chamber
Pump weight 1,170 grams (2.6 lb)
Pump materialAluminium (Powder Coated)
Burst pressure 500 kPa (72.5 psi)
Seal Ceramic face seal
Self Priming No, none of our pumps are self-priming
Fits hose size 35mm to 51mm (1.38” to 2”)
Push-On fitting Size
EWP Inlet & Outlet 38mm
with 3mm Sleeve (#8510) 44mm
with 6mm Sleeve (#8511) 51mm
Internal Fitting -Inlet & Outlet: -16AN ORB
280.00€
Χωρίς ΦΠΑ: 225.81€
- Διαθεσιμότητα: Σε απόθεμα
- Κωδικός: DC8060
- Βάρος: 1.00kg
