ENGINE CODES

2.3L EcoBoost

CHASSIS CODES

S550

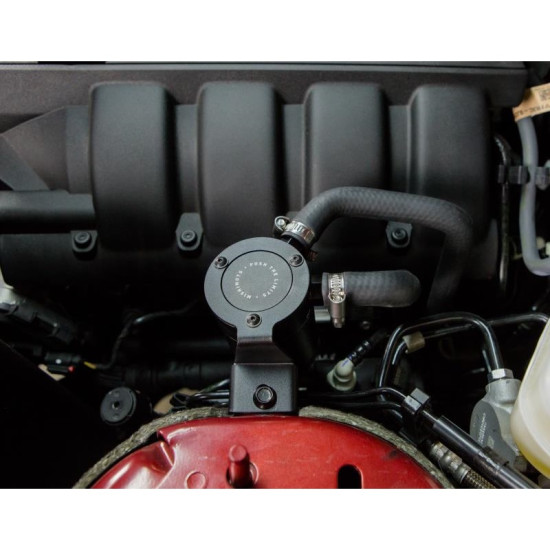

INSTALLATION NOTES

22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM).

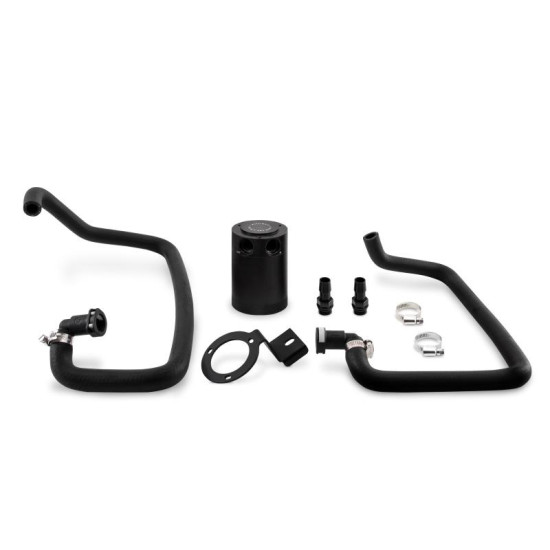

This product has been updated from its original configuration. You will receive straight fittings and 90-degree bend hoses, the original kit included 90-degree bend fittings and straight fitting hoses.

NOTE

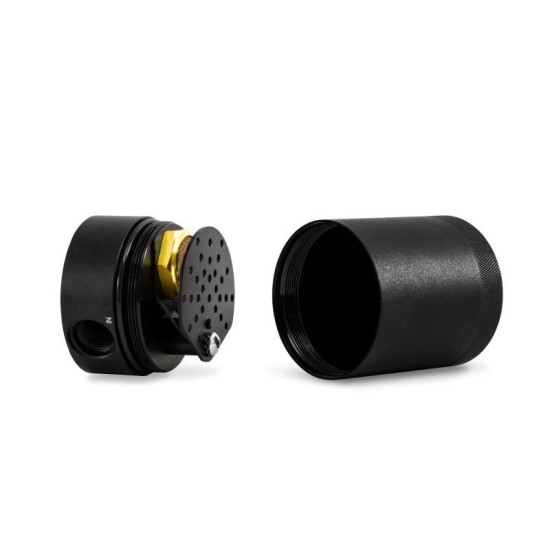

After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
